MNTD. Fi Pro Outdoor Hotspot Datasheet

Overview

Descriptions

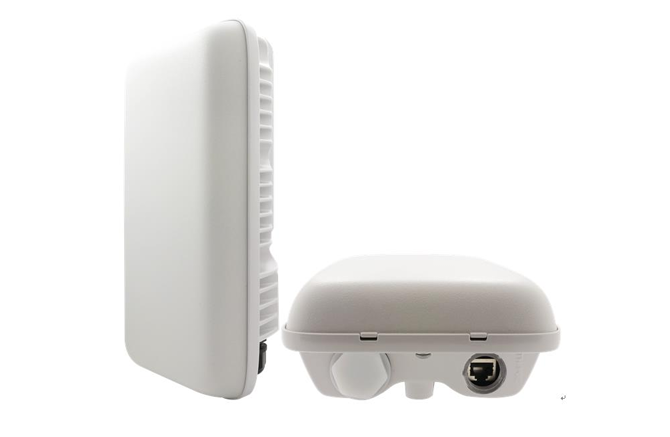

MNTD. Fi Pro Outdoor Hotspot is an outdoor device launched by RAK for building the Helium Mobile Network. It provides users with the simplest and most cost-effective way to build Helium Mobile Network coverage and earn Mobile rewards.

It is a dual-band 2x2 MU-MIMO 802.11ax outdoor Wi-Fi AP specifically designed for high-density deployments in outdoor locations that demand exceptional performance. With support for 802.11ax 2.4G/5G Wi-Fi access, it offers aggregated data rates of up to 1,774 Gbps. This enables you to establish a high-speed and stable Helium Mobile Network.

Furthermore, this Wi-Fi AP features the Bluetooth 5.0 and GPS module, for convenient device deployment and management by users.

With PoE support, builders have the flexibility of single-cable connection and can onboard with the Helium Mobile Builder app to start providing coverage leveraging Wi-Fi technology. The IP67-rated weatherproof design enables builders to provide seamless connectivity in outdoor spaces without worrying about harsh weather conditions.

Product Features

  • Operating frequencies:
    • 2.4 GHz 802.11b/g/n/ac/ax
    • 5 GHz 802.11a/n/ac/ax
  • Capabilities:
    • Supports 2.4G 2x2/40 MHz Wi-Fi (802.11b/g/n/ac/ax), up to 574 Mbps link rate
    • Supports 5G 2x2/80 MHz Wi-Fi(802.11a/n/ac/ax), up to 1.2 Gbps link rate
  • 2 x Dual-band Integrated 120° directional antennas (5dBi@2.4G, 7dBi @5GHz)
  • Supports BLE 5.0
  • Supports GPS
  • Integrated Bluetooth antenna
  • All-in-one form factor allows for quick and simple deployment
  • Purpose-built app for quick onboarding and monitoring of hotspot status
  • IP67

Specifications

Overview


Specifications

Wi-Fi Interface

Item Specifications
Operating Frequencies

2.4 GHz 802.11b/g/n/ac/ax Supported frequency bands:

  • 2.4000 GHz ~ 2.4835 GHz

5 GHz 802.11a/n/ac/ax Supported frequency bands:

  • 5.150 GHz ~ 5.250 GHz
  • 5.250 GHz ~ 5.350 GHz
  • 5.470 GHz ~ 5.725 GHz
  • 5.725 GHz ~ 5.850 GHz
Max transmit power

2.4 GHz: Up to 24 dBm

5 GHz: Up to 24 dBm

Max EIRP

2.4 GHz: 32 dBm

5 GHz: 34 dBm

Date Rate

802.11b: 1, 2, 5.5, and 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps

802.11n: MCS0~MCS7

802.11ac: MCS0 ~ MCS9

802.11ax: MSC0 ~ MCS11

Receive Sensitivity

802.11g:

  • -90 dBm@6 Mbps
  • -74 dBm@54 Mbps

802.11n:

  • HT20 - MCS0/8/16: -90 dBm; MCS7/15: -71 dBm
  • HT40 - MCS0/8/16: -87 dBm; MCS7/15: -68 dBm

802.11a:

  • -90 dBm@6 Mbps
  • -74 dBm@54 Mbps

802.11ac:

  • VHT20 - MCS0: -90 dBm; MCS8: -67 dBm
  • VHT40 - MCS0: -87 dBm; MCS8: -61 dBm
  • VHT80 - MCS0: -84 dBm; MCS8: -58 dBm

802.11ax:

  • HE20 - MCS0: -90 dBm; MCS11: -60 dBm
  • HE40 - MCS0: -87 dBm; MCS11: -57 dBm
  • HE80 - MCS0: -84 dBm; MCS11: -54 dBm

Environmental Specifications

Item Specifications
Temperature

Operation: -40 ℃~+65 ℃

Storage: -40 ℃~+85 ℃

Operating Humidity 5 %~95 % (non-condensing)
Elevations 86 kPa~106 kPa altitude
Dustproof and Waterproof IP67
Compliance
  • NRTL Listed 62368-1 (US & CA)
  • CB with IEC/EN 62368-1 IEC 60950-22 (Basic safety certificate for worldwide marketing)
  • GB 9254 -2008 (Class B of Product), EN55032 , EN55035, EN61000-4-3 Level 4, EN61000-4-2, FCC Part 15B
  • WEEE 2002/96/EC recyclable materials requirements
  • FCC DOC Part 15 Class B (US)
  • FCC Part 15 Subpart C 15.247 (US)
  • FCC Part 15 Subpart E 15.407 (US)

Hardware Specifications

Item Specifications
Dimension (W x D x H) 260 mm x 140 mm x 71 mm, without bracket
Weight 1500 g, without bracket
LEDs 1 x RBG LED (Software definition)
Interface

1 x 2.5GE WAN with 802.3 af/at PoE (PD)

1 x Reset button

Input Voltage 57 ᵥDC, 802.3 af/at PoE (PD)
Power consumption <15 W
Installation Pole and wall mounting

Radiation Patterns

Frequency(MHz) 2400~2500 5150~5850
Polarization Horizontal/Vertical Horizontal/Vertical
Peak Gain(dBi) 5 dBi 7 dBi
Efficiency (Avg) >70 % >75 %
Return Loss 10 dB 10 dB
Isolation 20 dB 20 dB
H-Beam Width 120 degree 120 degree
V-Beam Width 60 degree 60 degree

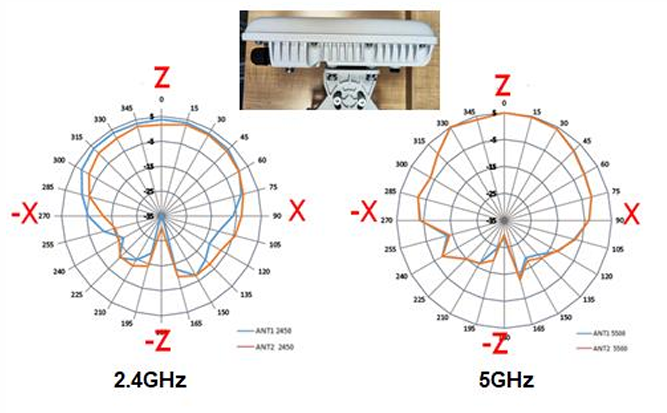

Horizontal planes (top view, pole mounting)

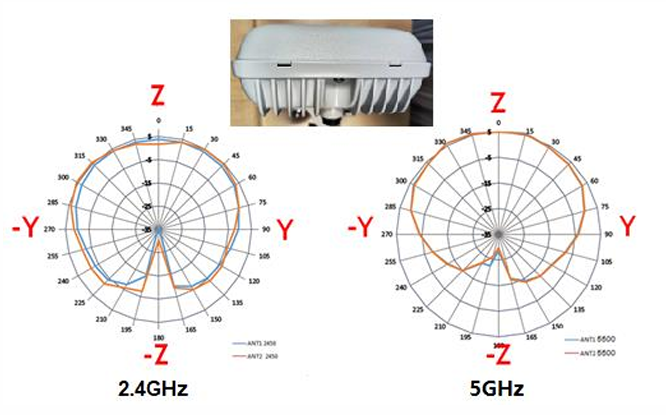

Vertical planes (side view, pole mounting)
